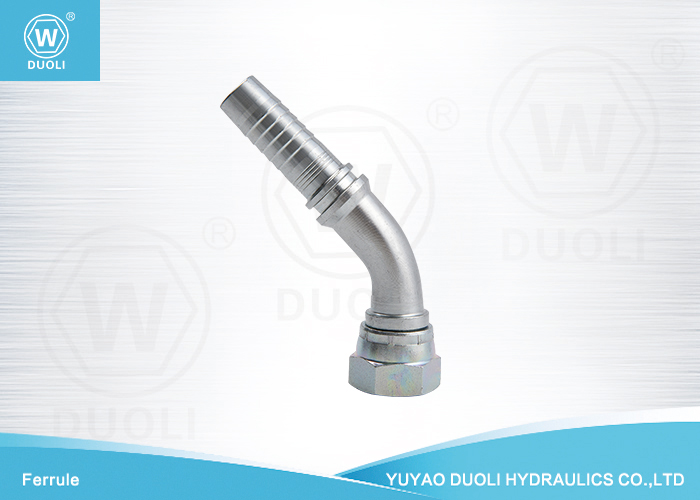

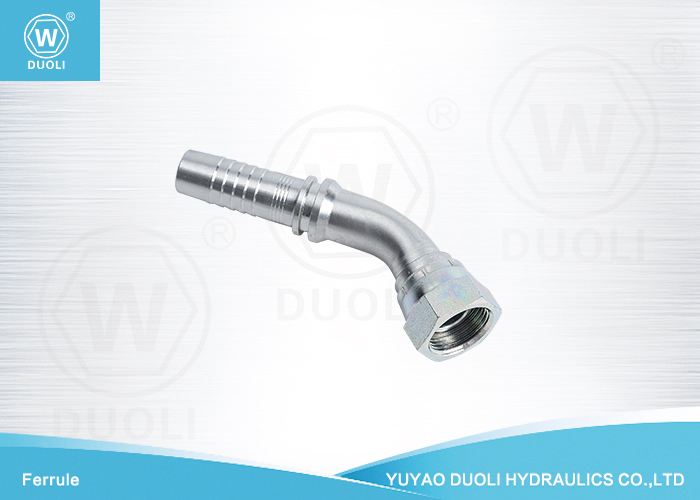

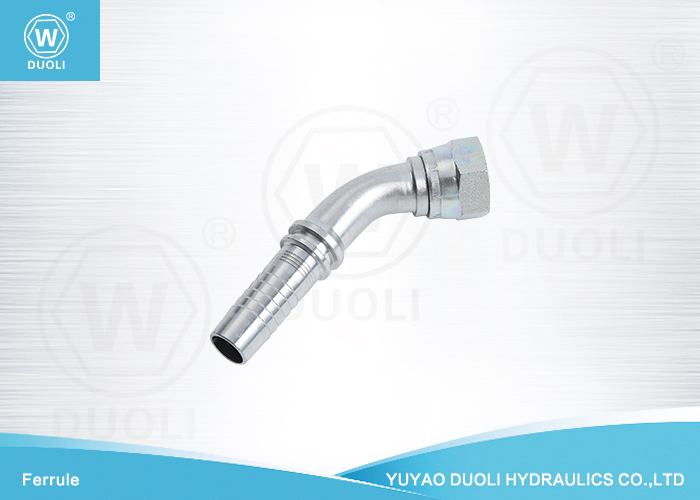

The 45° BSP Female 60° Cone Swivel Nut is a specialized hydraulic and fluid system fitting designed for precise applications where space constraints and specific angles are crucial. This component combines the adherence to the British Standard Pipe (BSP) threading system, a precise 60° cone sealing mechanism, and the convenience of a swivel nut.
The 45° angle configuration is a standout feature of this fitting, making it particularly suitable for installations where hoses or pipes must navigate tight corners or angles.
The 60° cone ensures a secure and leak-resistant connection when mated with a compatible male component, guaranteeing reliability even in high-pressure environments. The swivel nut simplifies installation and adjustment, allowing for easy alignment with other system components while reducing the risk of cross-threading.
Part No. |
Thread E |
WINNER |
Description |
60-04-04 |
G1/4"×19 |
22641-04-04 |
|
60-06-06 |
G3/8"×19 |
22641-06-06 |
|
60-08-08 |
G1/2"×14 |
22641-08-08 |
|
60-10-10 |
G5/8"×14 |
22641-10-10 |
|
60-12-12 |
G3/4"×14 |
22641-12-12 |
|
60-16-16 |
G1"×11 |
22641-16-16 |
|
60-20-20 |
G1.1/4"×11 |
22641-20-20 |
|
60-24-24 |
G1.1/2"×11 |
22641-24-24 |
|
60-32-32 |
G2"×11 |
22641-32-32 |
