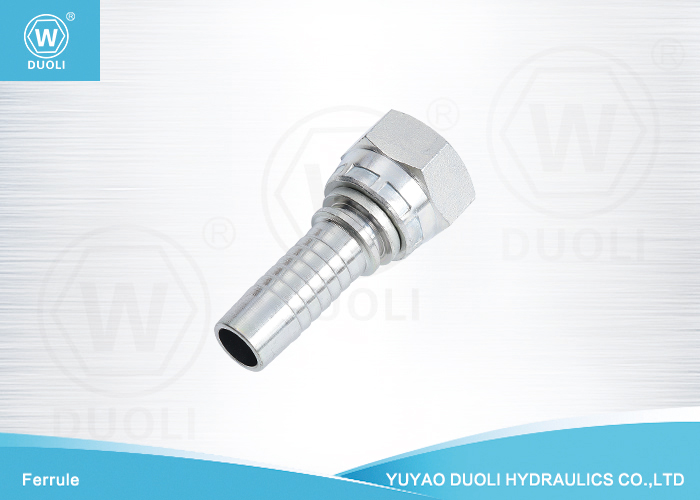

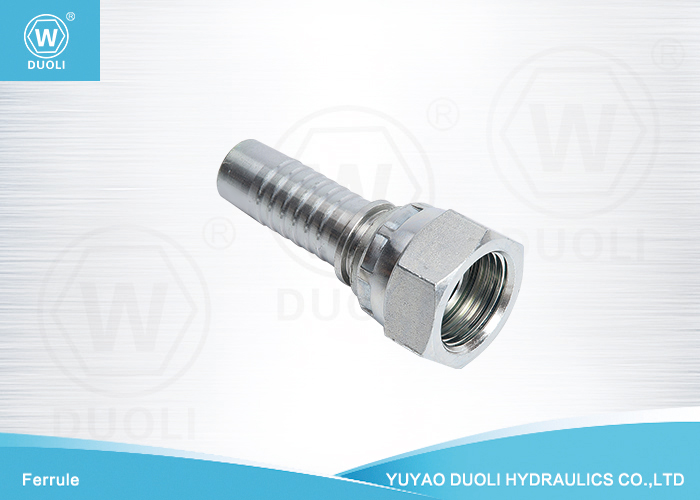

BSP FEMALE 60° CONE SWIVEL NUT

The BSP Female 60° Cone Swivel Nut is a crucial component in hydraulic and fluid systems, playing a pivotal role in ensuring secure and leak-free connections. BSP fittings are renowned for their reliability, making them a go-to choice in the United Kingdom and many other regions. This fitting has an internal thread, allowing it to mate with an external male threaded component. This creates a sturdy and sealed connection. This design ensures a robust and reliable seal when coupled with a compatible counterpart, preventing leaks and enhancing safety. Swivel Nut is especially advantageous when flexibility in orientation is required without disassembling the connection.

PREV：No previous article NEXT：BSP FEMALE 60°CONE SWIVEL NUT DOUBLE HEXAGON

Twitter
Youtube
Facebook

+86-13586832949

ritashu@wh-duoli.com

Product Parameters

Part No.	Thread E	WINNER PART NO.	Description
Part No.	Thread E	WINNER PART NO.	Description
01-02-02	G1/8"×28	22611-02-02	BSP FEMALE 60°CONE SWIVEL NUT
01-04-04	G1/4"×19	22611-04-04
01-06-06	G3/8"×19	22611-06-06
01-06-04	G3/8"×19	22611-06-04
01-06-08	G1/2"×14	22611-06-08
01-08-08	G1/2"×14	22611-08-08
01-08-06	G1/2"×14	22611-08-06
01-10-10	G5/8"×14	22611-10-10
01-12-12	G3/4"×14	22611-12-12
01-12-10	G3/4"×14	22611-12-10
01-16-16(HEX S38)	G1"×11	22611-16-16
01-16-12(HEX S38)	G1"×11	22611-16-12
01-20-20	G1.1/4"×11	22611-20-20
01-24-24	G1.1/2"×11	22611-24-24
01-32-32	G2"×11	22611-32-32
