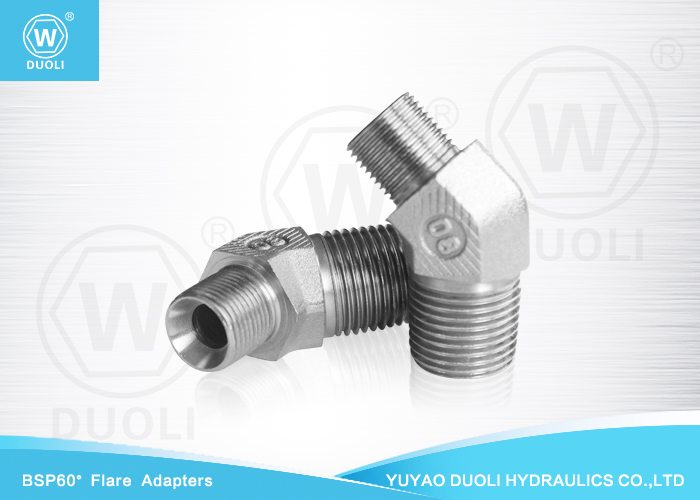

As a fundamental component in hydraulic and pneumatic systems, the 45° elbow BSP male 60° seat/BSPT male fitting embodies precision engineering and versatile functionality. This crucial fitting plays a vital role in creating efficient fluid pathways, ensuring smooth and controlled flow within a network of pipes or hoses.
The British Standard Pipe (BSP) male thread, known for its reliability and standardization, is a key feature of this fitting. The BSP male thread, which conforms to a 60° seat, provides a secure and leak-free connection when mated with a corresponding BSP female thread. Additionally, the 45° elbow design allows for a change in direction without compromising the flow rate or structural integrity of the fluid system.
The inclusion of the BSPT (British Standard Pipe Taper) male end further enhances the adaptability and versatility of this fitting. BSPT, with its tapered threads, offers a tight seal, making it an ideal choice for a variety of applications where a secure and leak-resistant connection is paramount.
PART NO. |
Thread |
WINNER PART NO. |
Description |
|
1 |
2 |
|||
A6BA-04-04 |
G1/4"×19 |
R1/4"×19 |
1BT4-04SP |
![]()
|
A6BA-04-06 |
G1/4"×19 |
R3/8"×19 |
1BT4-04-06SP |
|
A6BA-06-06 |
G3/8"×19 |
R3/8"×19 |
1BT4-06SP |
|
A6BA-06-04 |
G3/8"×19 |
R1/4"×19 |
1BT4-06-04SP |
|
A6BA-06-08 |
G3/8"×19 |
R1/2"×14 |
1BT4-06-08SP |
|
A6BA-08-08 |
G1/2"×14 |
R1/2"×14 |
1BT4-08SP |
|
A6BA-08-06 |
G1/2"×14 |
R3/8"×19 |
1BT4-08-06SP |
|
A6BA-08-12 |
G1/2"×14 |
R3/4"×14 |
1BT4-08-12SP |
|
A6BA-10-08 |
G5/8"×14 |
R1/2"×14 |
1BT4-10-08SP |
|
A6BA-10-12 |
G5/8"×14 |
R3/4"×14 |
1BT4-10-12SP |
|
A6BA-12-12 |
G3/4"×14 |
R3/4"×14 |
1BT4-12SP |
|
A6BA-12-08 |
G3/4"×14 |
R1/2"×14 |
1BT4-12-08SP |
|
A6BA-12-16 |
G3/4"×14 |
R1"×11 |
1BT4-12-16SP |
|
A6BA-16-16 |
G1"×11 |
R1"×11 |
1BT4-16SP |
|
A6BA-16-12 |
G1"×11 |
R3/4"×14 |
1BT4-16-12SP |
|
A6BA-16-20 |
G1"×11 |
R1.1/4"×11 |
1BT4-16-20SP |
|
A6BA-20-20 |
G1.1/4"×11 |
R1.1/4"×11 |
1BT4-20SP |
|
A6BA-20-16 |
G1.1/4"×11 |
R1"×11 |
1BT4-20-16P |
|
A6BA-20-24 |
G1.1/4"×11 |
R1.1/2"×11 |
1BT4-20-24SP |
|
A6BA-24-24 |
G1.1/2"×11 |
R1.1/2"×11 |
1BT4-24SP |
|
A6BA-24-20 |
G1.1/2"×11 |
R1.1/4"×11 |
1BT4-24-20SP |
