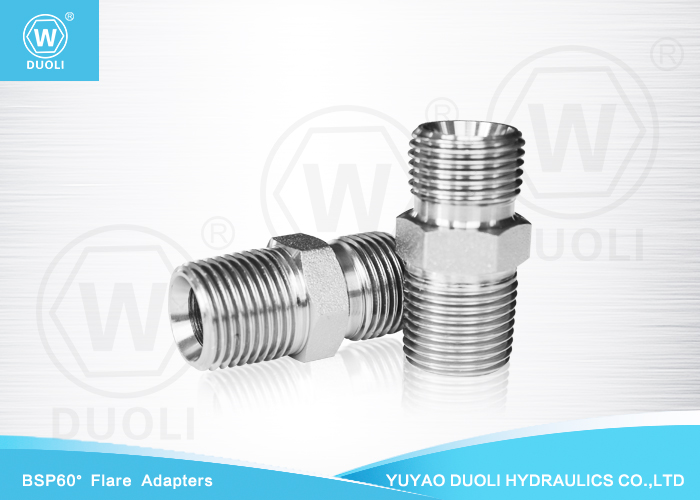

In the realm of hydraulic connections and fittings, precision and reliability are paramount. The BSP Male 60° Seat with a Bonded Seal stands as a testament to advancements in hydraulic engineering, providing a solution for fluid conveyance systems. This innovative fitting combines the British Standard Pipe (BSP) thread with a 60° conical seat, ensuring a secure and leak-free connection in hydraulic applications.
The BSP Male 60° Seat, characterized by its conical thread profile and sealing interface, offers a highly effective means of connecting hydraulic components. The conical shape of the fitting ensures a tight seal, minimizing the risk of leakage and maintaining the integrity of the hydraulic system. The incorporation of a bonded seal further enhances the sealing performance, augmenting the overall reliability of the connection.
This fitting finds extensive use in various industries, including automotive, aerospace, marine, and industrial applications, where hydraulic systems play a critical role. Its design and construction adhere to stringent quality standards, making it suitable for high-pressure and high-demand hydraulic environments.
PART NO. |
Thread |
WINNER PART NO. |
Description |
|
1 |
2 |
|||
ADBB-02-02 |
G1/8"×28 |
G1/8"×28 |
1B-02 |
|
ADBB-02-04 |
G1/8"×28 |
G1/4"×19 |
1B-02-04 |
|
ADBB-04-04 |
G1/4"×19 |
G1/4"×19 |
1B-04 |
|
ADBB-04-06 |
G1/4"×19 |
G3/8"×19 |
1B-04-06 |
|
ADBB-04-08 |
G1/4"×19 |
G1/2"×14 |
1B-04-08 |
|
ADBB-06-06 |
G3/8"×19 |
G3/8"×19 |
1B-06 |
|
ADBB-06-08 |
G3/8"×19 |
G1/2"×14 |
1B-06-08 |
|
ADBB-08-08 |
G1/2"×14 |
G1/2"×14 |
1B-08 |
|
ADBB-08-10 |
G1/2"×14 |
G5/8"×14 |
1B-08-10 |
|
ADBB-08-12 |
G1/2"×14 |
G3/4"×14 |
1B-08-12 |
|
ADBB-10-10 |
G5/8"×14 |
G5/8"×14 |
1B-10 |
|
ADBB-10-12 |
G5/8"×14 |
G3/4"×14 |
1B-10-12 |
|
ADBB-12-12 |
G3/4"×14 |
G3/4"×14 |
1B-12 |
|
ADBB-12-16 |
G3/4"×14 |
G1"×11 |
1B-12-16 |
|
ADBB-16-16 |
G1"×11 |
G1"×11 |
1B-16 |
|
ADBB-16-20 |
G1"×11 |
G1.1/4"×11 |
1B-16-20 |
|
ADBB-20-20 |
G1.1/4"×11 |
G1.1/4"×11 |
1B-20 |
|
ADBB-20-24 |
G1.1/4"×11 |
G1.1/2"×11 |
1B-20-24 |
|
ADBB-24-24 |
G1.1/2"×11 |
G1.1/2"×11 |
1B-24 |
|
ADBB-24-32 |
G1.1/2"×11 |
G2"×11 |
1B-24-32 |
|
ADBB-32-32 |
G2"×11 |
G2"×11 |
1B-32 |
