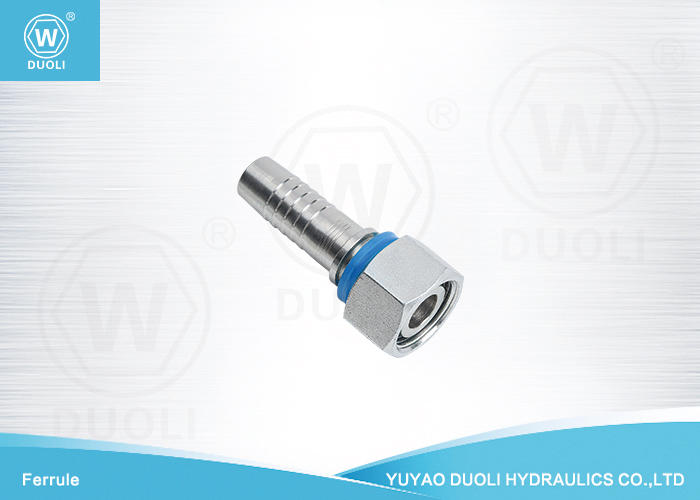

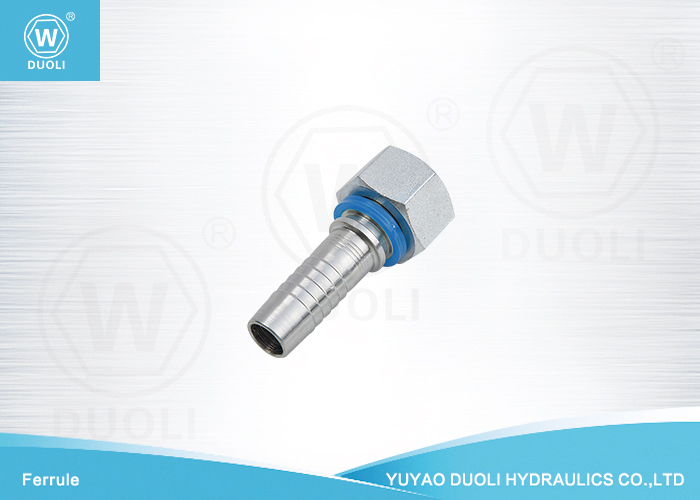

中文简体 Home / Products / Hydraulic Hose Fittings / DIN 24°Multi Seal Hydraulic Hose Fittings / METRIC FEMALE 24° CONE O-RING L.T. ISO 12151-2-DIN3865(DKO-L)
|
Part No. |
Thread E |
WINNER |
Description |
|
806-12-04 06L LN |
M12×1.5 |
20411-12-04 T |
|
|
806-14-04 08L LN |
M14×1.5 |
20411-14-04 T |
|
|
806-16-04 10L LN |
M16×1.5 |
20411-16-04 T |
|
|
806-16-05 10L LN |
M16×1.5 |
20411-16-05 T |
|
|
806-16-06 10L LN |
M16×1.5 |
20411-16-06 T |
|
|
806-18-04 12L LN |
M18×1.5 |
20411-18-04 T |
|
|
806-18-05 12L LN |
M18×1.5 |
20411-18-05 T |
|
|
806-18-06 12L LN |
M18×1.5 |
20411-18-06 T |
|
|
806-22-06 15L LN |
M22×1.5 |
20411-22-06 T |
|
|
806-22-08 15L LN |
M22×1.5 |
20411-22-08 T |
|
|
806-26-08 18L LN |
M26×1.5 |
20411-26-08 T |
|
|
806-26-10 18L LN |
M26×1.5 |
20411-26-10 T |
|
|
806-30-08 22L LN |
M30×2.0 |
20411-30-08 T |
|
|
806-30-10 22L LN |
M30×2.0 |
20411-30-10 T |
|
|
806-30-12 22L LN |
M30×2.0 |
20411-30-12 T |
|
|
806-36-12 28L LN |
M36×2.0 |
20411-36-12 T |
|
|
806-36-16 28L LN |
M36×2.0 |
20411-36-16 T |
|
|
806-45-16 35L LN |
M45×2.0 |
20411-45-16 T |
|
|
806-45-20 35L LN |
M45×2.0 |
20411-45-20 T |
|
|
806-52-20 42L LN |
M52×2.0 |
20411-52-20 T |
|
|
806-52-24 42L LN |
M52×2.0 |
20411-52-24 T |
