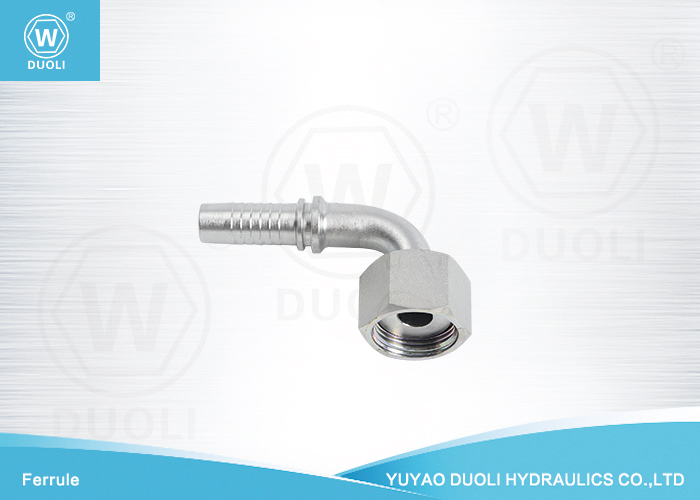

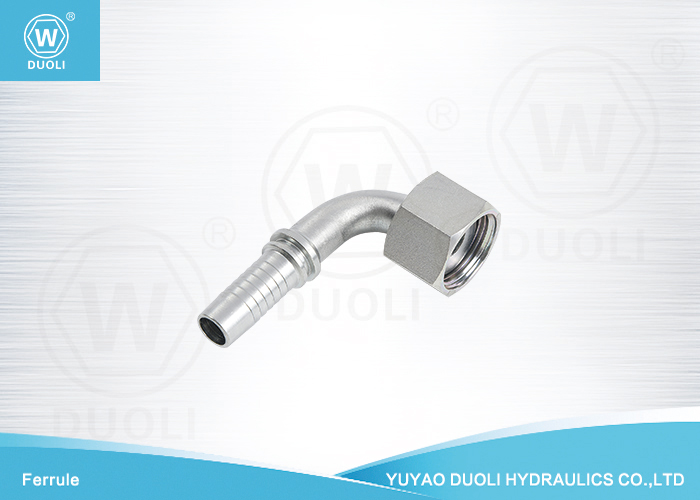

The 90° ORFS Female Flat Seat fitting, designed in strict accordance with ISO 12151-1/SAE J516 standards, is an essential component in hydraulic and fluid connection systems. This particular fitting offers a 90-degree angle, making it a versatile choice for applications where space constraints or specific routing needs demand a right-angle connection.
Constructed from high-quality materials, this 90° ORFS Female Flat Seat fitting is engineered to endure the rigors of demanding environments and ensure long-lasting performance. Its ISO 12151-1/SAE J516 compliance guarantees its adherence to globally recognized standards, making it a trusted choice for hydraulic systems worldwide.
The defining feature of this fitting is its 90-degree orientation, allowing it to provide a right-angle connection while maintaining the outstanding sealing properties of the ORFS design. When paired with a compatible male ORFS fitting, the integrated O-ring face seal and the 90-degree configuration ensure a secure and leak-free connection, enhancing the safety and efficiency of hydraulic systems. From heavy industrial machinery to mobile equipment and various hydraulic applications, the 90° ORFS Female Flat Seat ISO 12151-1/SAE J516 fitting proves indispensable in achieving reliable fluid transfer.
Part No. |
Thread E |
WINNER |
Description |
752-04-04 LN |
9/16"×18 |
24291-04-04 LN |
![]() 90°ORFS FEMALE FLAT SEAT ISO 12151-1/SAE J516
|
752-06-06 LN |
11/16"×16 |
24291-06-06 LN |
|
752-08-08 LN |
13/16"×16 |
24291-08-08 LN |
|
752-10-08 LN |
1"×14 |
24291-10-08 LN |
|
752-10-10 LN |
1"×14 |
24291-10-10 LN |
|
752-12-10 LN |
1.3/16"×12 |
24291-12-10 LN |
|
752-12-12 LN |
1.3/16"×12 |
24291-12-12 LN |
|
752-16-16 LN |
1.7/16"×12 |
24291-16-16 LN |
|
752-20-20 LN |
1.11/16"×12 |
24291-20-20 LN |
