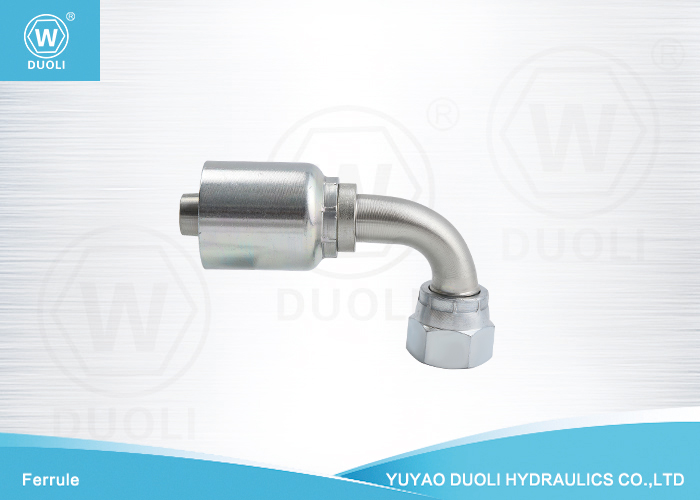

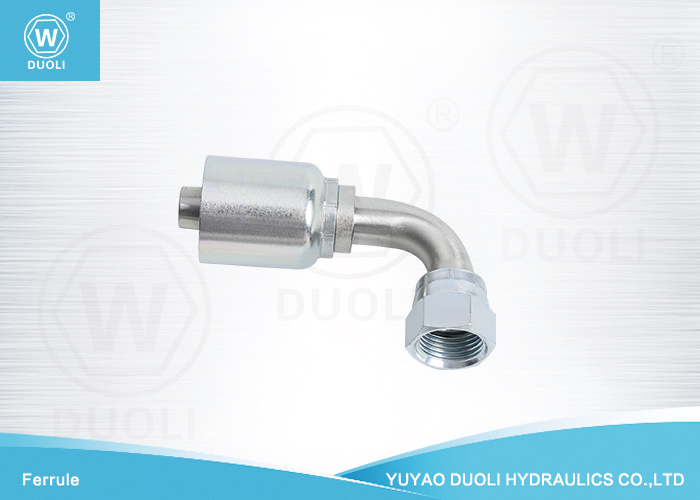

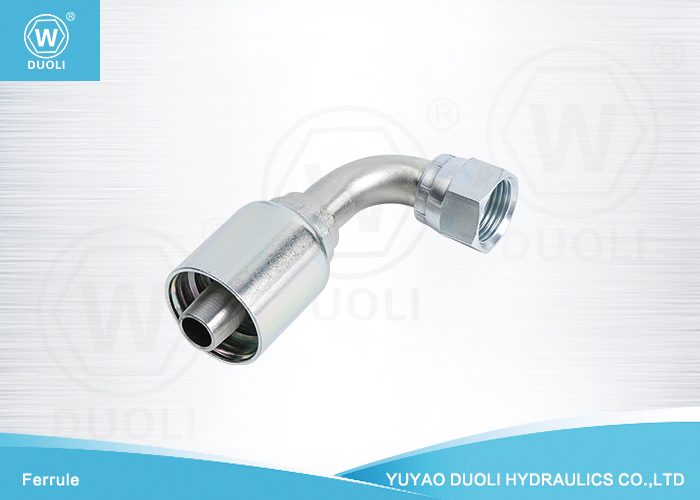

The JIC 37-degree Parker 43 Series 90-degree Elbow One Piece Fitting is a critical component in hydraulic and pneumatic systems, renowned for its functionality and reliability.
The 90-degree elbow configuration of this fitting allows for seamless integration into hydraulic and pneumatic systems, especially where tight spaces or specific angles are involved. The JIC 37-degree flare end connections ensure a secure and leak-free connection, offering enhanced safety and performance in various applications.
One of the standout features of the JIC 37-degree Parker 43 Series 90-degree Elbow One Piece Fitting is its one-piece construction, providing structural integrity and minimizing the potential for leaks or failures. This design, combined with high-quality materials and precision engineering, ensures the fitting can withstand high-pressure environments while maintaining durability over extended periods of use.
PARKER NO. |
Thread |
|
13943-4-4 |
7/16"-20UNF |
|
13943-4-6 |
7/16"-20UNF |
|
13943-5-4 |
1/2"-20UNF |
|
13943-6-4 |
9/16"-18UNF |
|
13943-6-8 |
9/16"-18UNF |
|
13943-6-6 |
9/16"-18UNF |
|
13943-8-6 |
3/4"-16UNF |
|
13943-8-8 |
3/4"-16UNF |
|
13943-8-10 |
3/4"-16UNF |
|
13943-10-6 |
7/8"-14UN |
|
13943-10-8 |
7/8"-14UN |
|
13943-10-10 |
7/8"-14UN |
|
13943-12-8 |
1.1/16"-12UN |
|
13943-12-10 |
1.1/16"-12UN |
|
13943-12-12 |
1.1/16"-12UN |
|
13943-16-12 |
1.5/16"-12UN |
|
13943-16-16 |
1.5/16"-12UN |
|
13943-20-20 |
1.5/8"-12UN |
|
13943-24-24 |
1.7/8"-12UN |
|
13943-32-32 |
2.1/2"-12UN |
