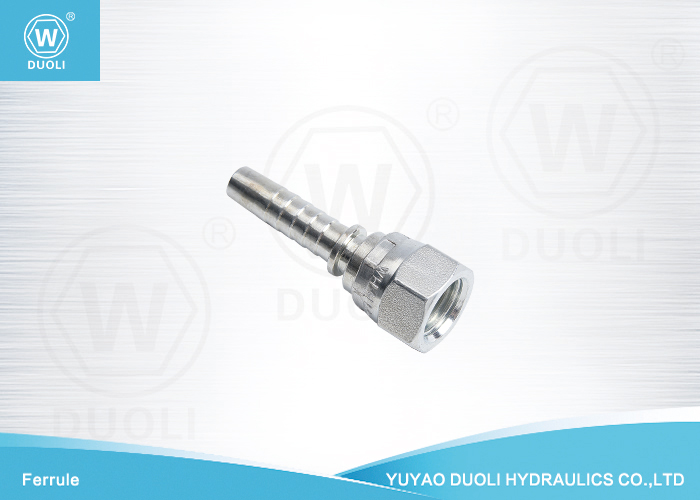

The Metric Female 24° Multi Seal H.T. (High-Pressure Thread) fitting meets ISO 12151-2 and DIN 3865 standards, and is a critical component in hydraulic and fluid systems, renowned for its precision engineering and great sealing capabilities. This fitting is meticulously designed to meet the stringent requirements of these international standards, ensuring compatibility with a wide range of hydraulic components and systems worldwide.This precise cone design ensures a secure and leak-resistant connection, even under high-pressure conditions, making it ideal for critical applications.
The Metric Female 24° Multi Seal L.T. adheres to international standards, making it a preferred choice for professionals in hydraulic and fluid systems. Its metric measurements, 24° sealing cone, and advanced sealing technology ensure dependable performance, while the long threads offer added security. Whether in manufacturing, construction, or heavy industry, this fitting excels in delivering robust and efficient fluid connections, ensuring the integrity of hydraulic systems worldwide.
|
Part No. |
Thread E |
WINNER |
Description |
|
803-12-04 06L |
M12×1.5 |
20411C-12-04 |
|
|
803-14-04 08L |
M14×1.5 |
20411C-14-04 |
|
|
803-16-04 10L |
M16×1.5 |
20411C-16-04 |
|
|
803-16-05 10L |
M16×1.5 |
20411C-16-05 |
|
|
803-16-06 10L |
M16×1.5 |
20411C-16-06 |
|
|
803-18-04 12L |
M18×1.5 |
20411C-18-04 |
|
|
803-18-05 12L |
M18×1.5 |
20411C-18-05 |
|
|
803-18-06 12L |
M18×1.5 |
20411C-18-06 |
|
|
803-22-06 15L |
M22×1.5 |
20411C-22-06 |
|
|
803-22-08 15L |
M22×1.5 |
20411C-22-08 |
|
|
803-26-08 18L |
M26×1.5 |
20411C-26-08 |
|
|
803-26-10 18L |
M26×1.5 |
20411C-26-10 |
|
|
803-30-08 22L |
M30×2.0 |
20411C-30-08 |
|
|
803-30-10 22L |
M30×2.0 |
20411C-30-10 |
|
|
803-30-12 22L |
M30×2.0 |
20411C-30-12 |
|
|
803-36-12 28L |
M36×2.0 |
20411C-36-12 |
|
|
803-36-16 28L |
M36×2.0 |
20411C-36-16 |
|
|
803-45-16 35L |
M45×2.0 |
20411C-45-16 |
|
|
803-45-20 35L |
M45×2.0 |
20411C-45-20 |
|
|
803-52-20 42L |
M52×2.0 |
20411C-52-20 |
|
|
803-52-24 42L |
M52×2.0 |
20411C-52-24 |
