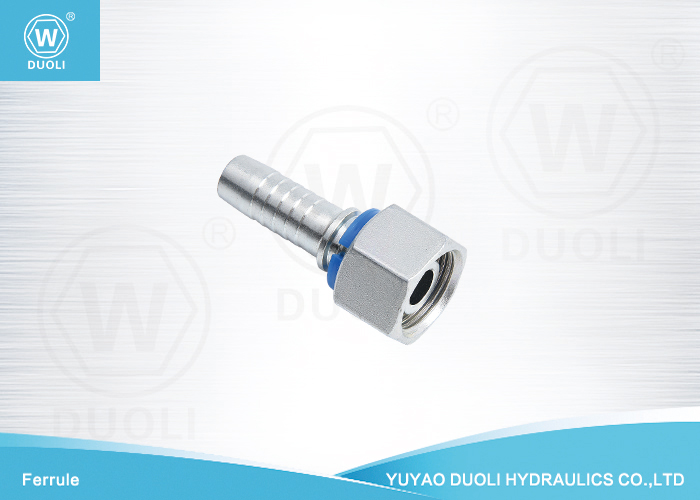

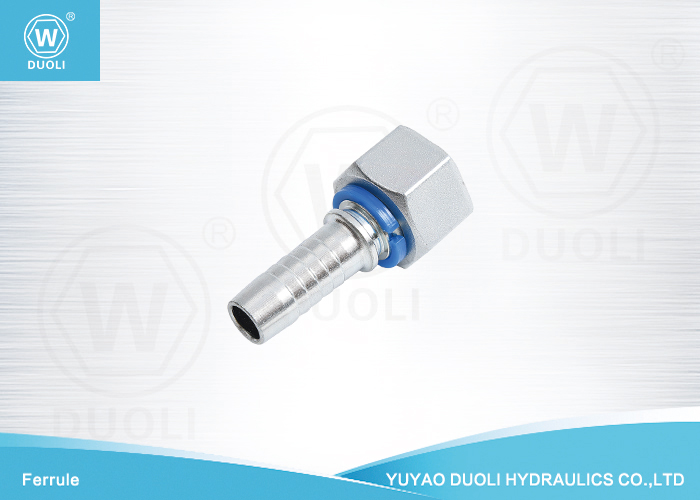

The Metric Female 24° Multi Seal H.T. (High-Pressure Thread) fitting, compliant with ISO 12151-2 and DIN 3865 standards, is a critical component in hydraulic and fluid systems, renowned for its precision engineering and exceptional sealing capabilities.
METRIC FEMALE 24° MULTI SEAL H.T. ISO 12151-2-DIN3865 is widely used in high-pressure hydraulic applications. This precise cone design guarantees a secure and leak-resistant connection, making it ideal for demanding and critical applications where hydraulic fluid integrity is paramount.
The "H.T." (High-Pressure Thread) specification indicates that this fitting is engineered to withstand and excel in high-pressure environments, making it suitable for industrial applications where hydraulic pressure is a crucial factor.
The Metric Female 24° Multi Seal H.T. adheres to rigorous international standards, making it the preferred choice for professionals in hydraulic and fluid systems requiring robust and reliable connections in high-pressure scenarios.
|
Part No. |
Thread E |
WINNER |
Description |
||
|
804-14-04 06S LN |
M14×1.5 |
20511c-14-04 T |
|
||
|
804-16-04 08S LN |
M16×1.5 |
20511c-16-04 T |
|||
|
804-16-06 08S LN |
M16×1.5 |
20511c-16-06 T |
|||
|
804-18-04 10S LN |
M18×1.5 |
20511c-18-04 T |
|||
|
804-18-05 10S LN |
M18×1.5 |
20511c-18-05 T |
|||
|
804-18-06 10S LN |
M18×1.5 |
20511c-18-06 T |
|||
|
804-20-05 12S LN |
M20×1.5 |
20511c-20-05 T |
|||
|
804-20-06 12S LN |
M20×1.5 |
20511c-20-06 T |
|||
|
804-22-06 14S LN |
M22×1.5 |
20511c-22-06 T |
|||
|
804-22-08 14S LN |
M22×1.5 |
20511c-22-08 T |
|||
|
804-24-06 16S LN |
M24×1.5 |
20511c-24-06 T |
|||
|
804-24-08 16S LN |
M24×1.5 |
20511c-24-08 T |
|||
|
804-30-08 20S LN |
M30×2.0 |
20511c-30-08 T |
|||
|
804-30-10 20S LN |
M30×2.0 |
20511c-30-10 T |
|||
|
804-30-12 20S LN |
M30×2.0 |
20511c-30-12 T |
|||
|
804-36-12 25S LN |
M36×2.0 |
20511c-36-12 T |
|||
|
804-36-16 25S LN |
M36×2.0 |
20511c-36-16 T |
|||
|
804-42-16 30S LN |
M42×2.0 |
20511c-42-16 T |
|||
|
804-42-20 30S LN |
M42×2.0 |
20511c-42-20 T |
|||
|
804-52-20 38S LN |
M52×2.0 |
20511c-52-20 T |
|||
|
804-52-24 38S LN |
M52×2.0 |
20511c-52-24 T |
|||
