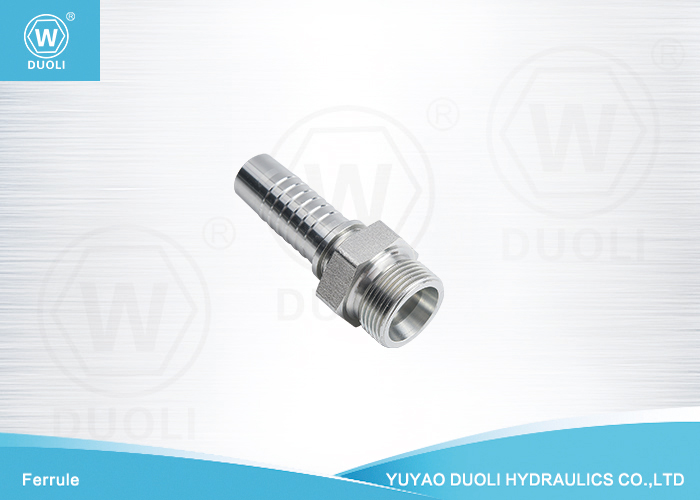

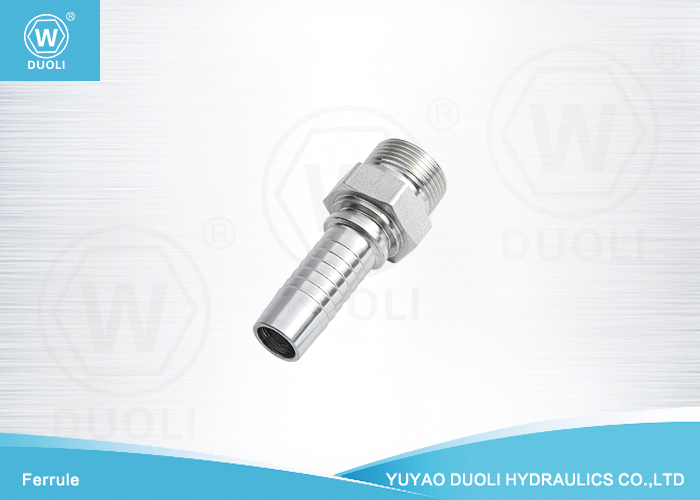

中文简体 Home / Products / Hydraulic Hose Fittings / DIN 24°Multi Seal Hydraulic Hose Fittings / METRIC MALE 24° CONE SEAT H.T. ISO 8434-1-DIN3861
|
Part No. |
Thread E |
WINNER |
Description |
|
814-14-04 06S |
M14×1.5 |
10511-14-04 |
|
|
814-16-04 08S |
M16×1.5 |
10511-16-04 |
|
|
814-16-06 08S |
M16×1.5 |
10511-16-16 |
|
|
814-18-04 10S |
M18×1.5 |
10511-18-04 |
|
|
814-18-06 10S |
M18×1.5 |
10511-18-06 |
|
|
814-18-08 10S |
M18×1.5 |
10511-18-08 |
|
|
814-20-06 12S |
M20×1.5 |
10511-20-06 |
|
|
814-20-08 12S |
M20×1.5 |
10511-20-08 |
|
|
814-22-06 14S |
M22×1.5 |
10511-22-06 |
|
|
814-22-08 14S |
M22×1.5 |
10511-22-08 |
|
|
814-24-06 16S |
M24×1.5 |
10511-24-06 |
|
|
814-24-08 16S |
M24×1.5 |
10511-24-08 |
|
|
814-24-10 16S |
M24×1.5 |
10511-24-10 |
|
|
814-30-08 20S |
M30×2.0 |
10511-30-08 |
|
|
814-30-10 20S |
M30×2.0 |
10511-30-10 |
|
|
814-30-12 20S |
M30×2.0 |
10512-30-12 |
|
|
814-36-12 25S |
M36×2.0 |
10512-36-12 |
|
|
814-36-16 25S |
M36×2.0 |
10512-36-16 |
|
|
814-42-16 30S |
M42×2.0 |
10512-42-16 |
|
|
814-42-20 30S |
M42×2.0 |
10512-42-20 |
|
|
814-52-20 38S |
M52×2.0 |
10512-52-20 |
|
|
814-52-24 38S |
M52×2.0 |
10512-52-24 |
