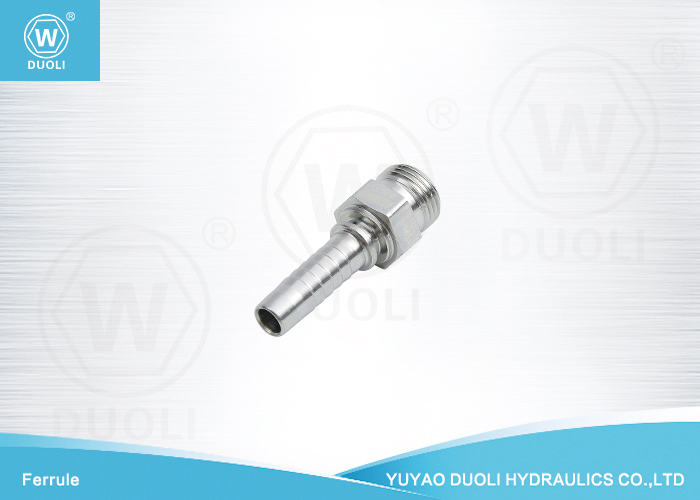

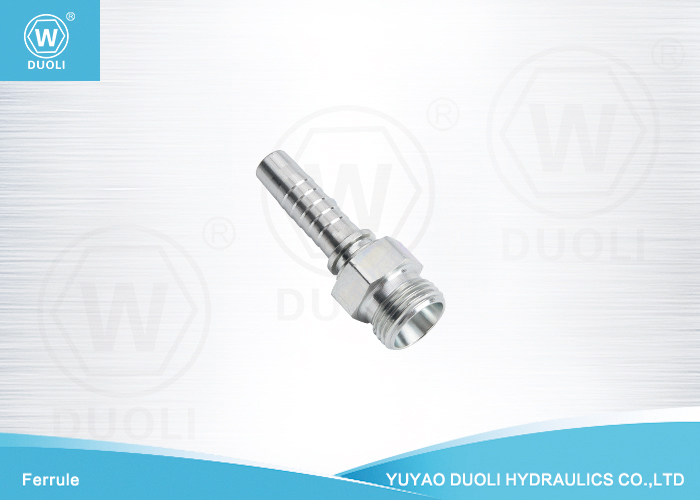

The Metric Male 24° Cone Seat L.T. (Long Thread) fitting meets ISO 8434-1 and DIN 3861 standards, is a vital component in hydraulic and fluid systems, renowned for its precision engineering and secure sealing capabilities.This fitting is meticulously crafted to meet the stringent requirements of international standards, ensuring compatibility with a wide range of hydraulic components and systems used worldwide.
ISO 8434-1 is an international standard that defines the requirements for metallic tube connections in hydraulic fluid power and lubrication systems. DIN3861 is a German standard that complements ISO 8434-1, further specifying certain dimensions and requirements for metric fittings.
These fittings are commonly used in industries such as manufacturing, construction, and automotive, where hydraulic systems are essential for powering machinery and equipment. Their precise engineering and adherence to international standards make them a trusted choice for ensuring the integrity and efficiency of hydraulic connections in various applications.
Part No. |
Thread E |
WINNER |
Description |
813-12-04 06L |
M12×1.5 |
10411-12-04 |
|
813-14-04 08L |
M14×1.5 |
10411-14-04 |
|
813-14-06 08L |
M14×1.5 |
10411-14-06 |
|
813-16-04 10L |
M16×1.5 |
10411-16-04 |
|
813-16-06 10L |
M16×1.5 |
10411-16-06 |
|
813-18-04 12L |
M18×1.5 |
10411-18-04 |
|
813-18-06 12L |
M18×1.5 |
10411-18-06 |
|
813-18-08 12L |
M18×1.5 |
10411-18-08 |
|
813-22-06 15L |
M22×1.5 |
10411-22-06 |
|
813-22-08 15L |
M22×1.5 |
10411-22-08 |
|
813-22-10 15L |
M22×1.5 |
10411-22-10 |
|
813-26-08 18L |
M26×1.5 |
10411-26-08 |
|
813-26-10 18L |
M26×1.5 |
10411-26-10 |
|
813-26-12 18L |
M26×1.5 |
10411-26-12 |
|
813-30-08 22L |
M30×2.0 |
10411-30-08 |
|
813-30-10 22L |
M30×2.0 |
10411-30-10 |
|
813-30-12 22L |
M30×2.0 |
10411-30-12 |
|
813-36-12 28L |
M36×2.0 |
10411-36-12 |
|
813-36-16 28L |
M36×2.0 |
10411-36-16 |
|
813-45-16 35L |
M45×2.0 |
10411-45-16 |
|
813-45-20 35L |
M45×2.0 |
10411-45-20 |
|
813-52-20 42L |
M52×2.0 |
10411-52-20 |
|
813-52-24 42L |
M52×2.0 |
10411-52-24 |
