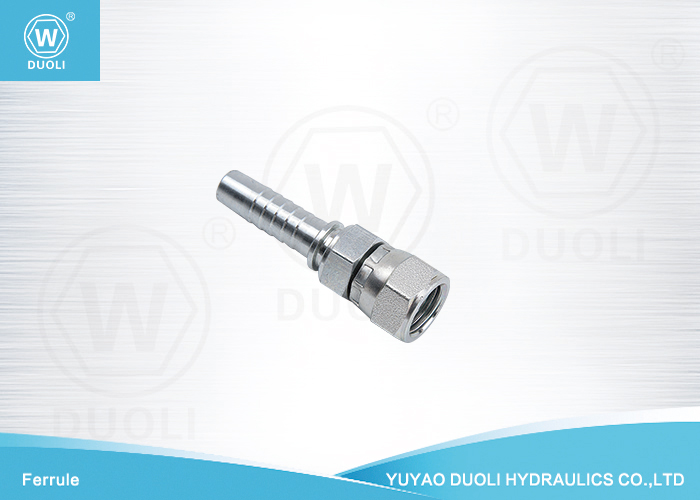

The JIC (Joint Industry Council) Female 37° Cone Seat Fitting with a Double Hexagon conforms to SAE J514 standards and is a versatile and robust component essential for hydraulic and fluid systems.This fitting combines the precision of the 37-degree cone seat design, a hallmark of JIC fittings, with the added convenience and torque-enhancing feature of a double hexagon design.
Its compatibility with other JIC components ensures secure and leak-resistant connectivity in hydraulic applications. The 37-degree cone seat provides a reliable seal even under high-pressure conditions, making it ideal for a broad spectrum of hydraulic systems.
JIC (Joint Industry Council) Female 37° Cone Seat Fitting with a Double Hexagon offers two hexagonal (six-sided) sections for enhanced grip and torque during installation and disassembly. This design not only simplifies the fitting process but also ensures a secure and reliable connection, minimizing the risk of leaks and system failures.
|
Part No. |
Thread E |
WINNER |
Description |
|
05-07-04 DH |
7/16"×20 |
26711D-04-04SM |
|
|
05-09-06 DH |
9/16"×18 |
26711D-06-06SM |
|
|
05-12-08 DH |
3/4"×16 |
26711D-08--8SM |
|
|
05-14-10 DH |
7/8"×14 |
26711D-10-10SM |
|
|
05-17-12 DH |
1.1/16"×12 |
26711D-12-12SM |
|
|
05-21-16 DH |
1.5/16"×12 |
26711D-16-16SM |
|
|
05-26-20 DH |
1.5/8"×12 |
26711D-20-20SM |
|
|
05-30-24 DH |
1.7/8"×12 |
26711D-24-24SM |
|
|
05-40-32 DH |
2/1/2"×12 |
26711D-32-32SM |
