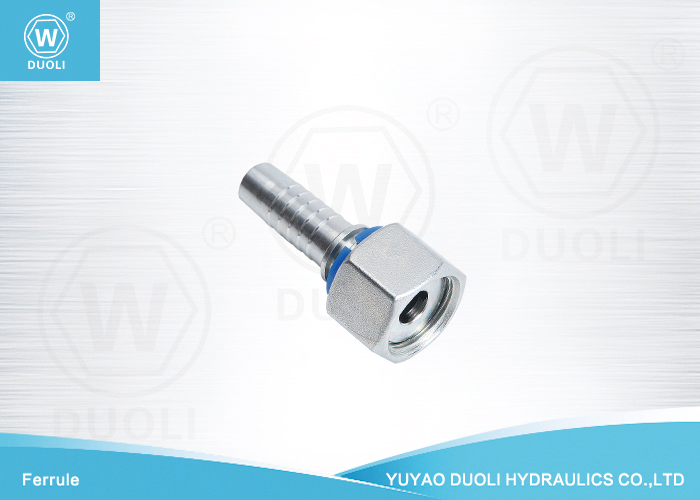

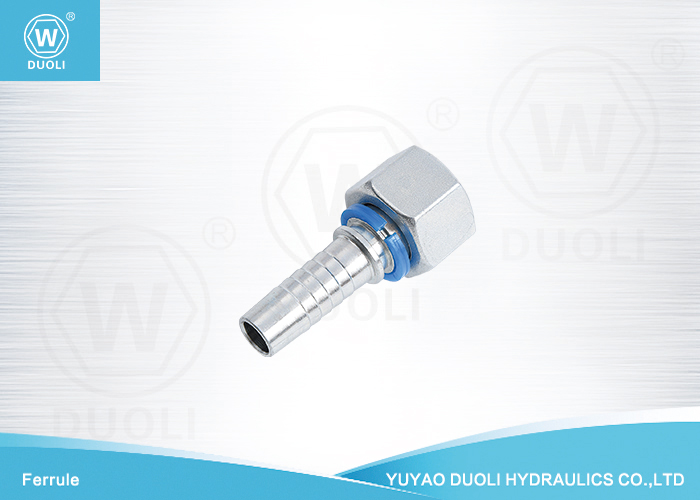

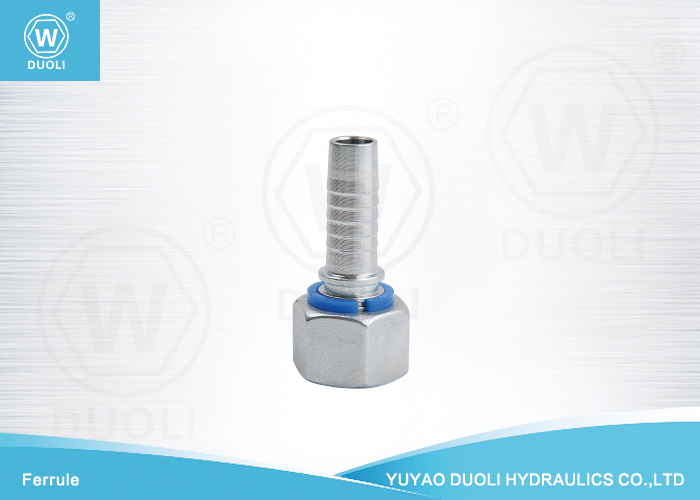

Designed to ISO 12151-1/SAE J516 standards, the ORFS Female Flat Seat represents a critical component in hydraulic and fluid connection systems. ORFS stands for O-Ring Face Seal and is a widely adopted design in the fluid power industry due to its great sealing and reliability capabilities. This female flat seat fitting is a testament to precision engineering and seamless functionality.
Crafted from high-quality materials, this fitting ensures longevity and durability in demanding applications. The ISO 12151-1/SAE J516 compliance guarantees that it adheres to international standards, making it suitable for use in a vast array of hydraulic systems worldwide.
The key feature of this fitting is its flat mating surface with an integrated O-ring groove, which creates a secure, leak-free connection when paired with a corresponding male ORFS fitting. This design reduces the risk of fluid leakage, enhancing the safety and efficiency of hydraulic systems.
Part No. |
Thread E |
WINNER |
Description |
702-04-04 |
9/16"×18 |
24211-04-04 |
|
702-06-04 LN |
11/16"×16 |
24211-06-04 LN |
|
702-06-06 LN |
11/16"×16 |
24211-06-06 LN |
|
702-08-06 LN |
13/16"×16 |
24211-08-06 LN |
|
702-08-08 LN |
13/16"×16 |
24211-08-08 LN |
|
702-10-08 LN |
1"×14 |
24211-10-08 LN |
|
702-10-10LN |
1"×14 |
24211-10-10 LN |
|
702-12-10 LN |
1.3/16"×12 |
24211-12-10 LN |
|
702-12-12 LN |
1.3/16"×12 |
24211-12-12 LN |
|
702-16-16 LN |
1.7/16"×12 |
24211-16-16 LN |
|
702-20-20 LN |
1.11/16"×12 |
24211-20-20 LN |
